ACE- Alpha products offers a wide range of gasket materials. They can be used for specific industrial applications and are all available in different gasket sheet sizes in order to provide the most suitable sealing solution for our customers.
Selection of the most appropriate gasket material strongly depends on several factors such as pressure, operating temperature, media, chemical composition ,type of flange, number of bolts.

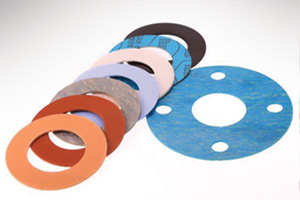

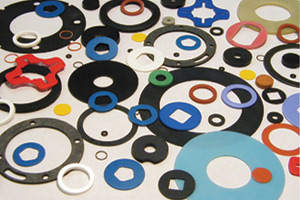

Our gaskets are made of
Compressed Non Asbestos Synthetic Fibers gasketing materials (CSF), OrganicFibres, Aramid Fibres, Glass Fibres, Carbon Fibres, Mineral Fibres, etc.,
Available with additional improvements: Graphite coating, PTFE & Anti stick coating, With wire reinforcement on request.
Gasket Materials and Application
Std.LineType
Composition
Max T (C/F)
Max P.(bar/ psi)
Properties & application
BA - 202
Organic Fibres, NBR
Peak
Continuous
180/356
140/284
40/580
Good resistance to water, gases,oils,fuels at lower loading
BA - 203
Aramid fibers, NBR
Peak
Continuous
250/482
200/392
50/725
Good resistance to water, gases,oils, fuels at medium loading
BA - 50
Aramid fibers, NBR
Peak
Continuous
280/536
220/428
80/1160
Good resistance to water, gases, fuels, food industry and oils good dynamic resistance for higher loading- WRAS/WQc, approved
BA - 55
Synthetic fibers, NBR
Peak
Continuous
350/662
270/518
100/1450
excellent and economical solution for a wide range of applications
BA - U
Aramid fibers, NBR
Peak
Continuous
350/662
250/482
100/1450
Excellent gasket material for general use with extremely wide application range.- WRAS/WQc,
BA - GL
Glass fibers, NBR
Peak
Continuous
440/824
350/662
100/1450
Sealing of very broad range of media at high temperatures.
BA - CF
Carbon fibers, NBR
Peak
Continuous
400/752
300/572
100/1450
Sealing of steam and very aggressive media in chemical and petrochemical industries
BA - Auto
Aramid fibers, SBR
Peak
Continuous
280/536
220/428
80/1160
Sealing at low surface stresses in automotive and chemical industry
BA - N
Aramid fibers, CR
Peak
Continuous
350/662
270/518
100/1450
Sealing of different applications in the refrigeration industry
BA - C
Aramid fibers, CSM
Peak
Continuous
200/392
150/302
60/870
Sealing of extremely aggressive media in many industries
BA - R
Aramid fibers, NBR, wire reinforced
Peak
Continuous
400/752
350/662
140/2030
Applications where resistance to the high dynamic loadings is the premium requirement
BA - R300
Inorganic, NBR, wire reinforcement
Peak
Continuous
550/1022
450/842
500/7251
extreme dynamic conditions in the automotive industry, petrochemical industryand shipyards
BA - 302
Inorganic fibers, NBR, special reinforcement
Peak
Continuous
650/1202
600/1112
500/7251
The most demanding requirements in automotive industry, petrochemical industry & shipyards
Dimensions of standard Sheet
Sheet size(mm): 1000 x1500 , 1500 x 1500, 3000 x 1500, 4500 x 1500
